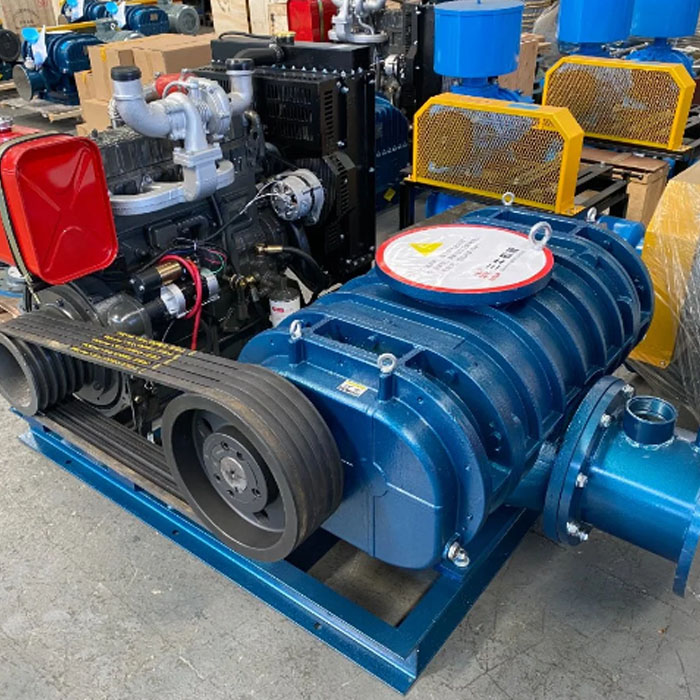

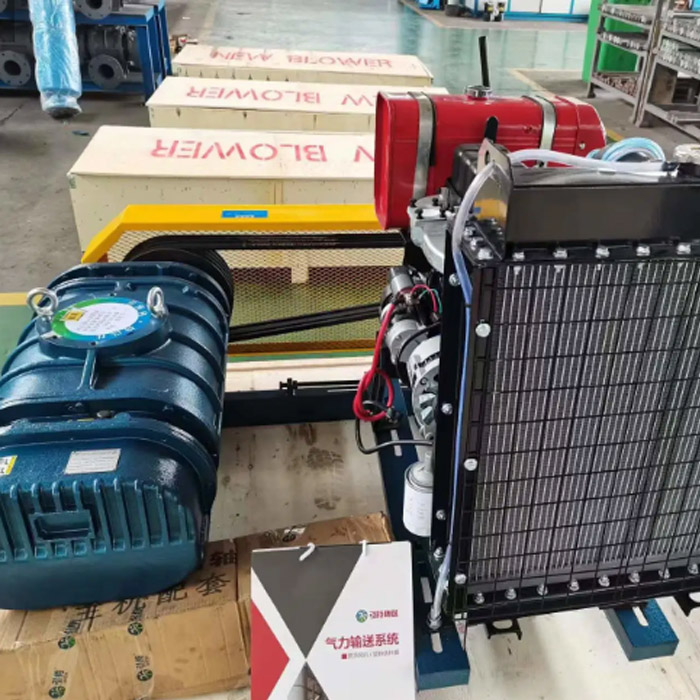

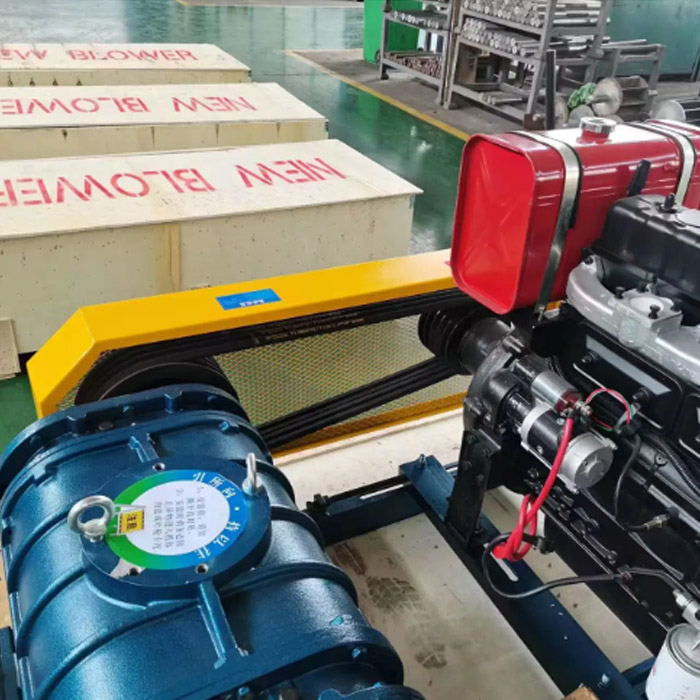

Diesel Low Pressure Roots Type of Blower

Yinchi is an Diesel Low Pressure Roots Type of Blower manufacturer and supplier in China. With rich experience R&D team in this filed, we could offer the best professional solution for clients with competitive price from home and abroad.

Model:YCSR series

Send Inquiry

Product Description

Yinchi’s pre startup inspection of Diesel Low Pressure Roots Blower:

(1) Check the tightness of the connection between bolts and nuts.

(2) Check the lubrication condition to ensure that the oil level is in the center position of the oil gauge.

(3) Check the tension of the belt and the alignment of the pulley.

(4) Check the voltage and frequency of the power supply;

(5) Check if all instruments are normal, and promptly notify maintenance personnel to replace them if there are any abnormalities.

(6) Open the main valve on the pipeline and the outlet valve of the blower that needs to be operated, while keeping the outlet valves of other non operating blowers in the "closed" state to avoid overloading the blower and damage to the machine.

Air pressure range	9.8-60KPA
Air volume	0.45m3/min---50m3/min
power	0.75kw--55kw
Transportation terms	By air/ By sea /By train
Packing terms	Wooden cases

Diesel Low Pressure Roots Type of Blower

Diesel Low Pressure Roots Blower runtime check:
(1) Adjust the air inlet valve of the contact oxidation tank to ensure even aeration;
(2) Dissolved oxygen should be controlled between 2-4mg/L (read out by a dissolved oxygen meter).
(3) In the early stage of operation, there may be noise and high current due to the viscosity of the lubricating oil. It can disappear on its own after running for 10-20 minutes.
(4) The flow rate cannot be adjusted by opening or closing the valve. The blower is a volumetric compressor that changes the flow rate and shaft power by adjusting the speed;
(5) The pressure gauge switch is in the normally closed state. To measure the pressure, the pressure gauge switch can be turned on.
(6) The same model also has differences in noise, as the location and piping of the blower in the mechanical room can cause differences in noise.

Company Introduction

We Shandong Yinchi Environmental Protection Equipment Co., Ltd. is more than a blower manufacturer, but an experienced and skillful roots blower solution provider. The YCSR series three-lobes roots blowers have served different industries as sewage treatment, aquaculture, fish farms, shrimp pond, chemical, electric power, steel, cement, environmental protection, etc. around the world. We provide solutions to products, technical support, project design, and overall construction. And has established a good reputation in the field of pneumatic conveying.

Your problems of feed back will be updated and solved, and our quality keeps improving. Customer satisfaction is our biggest motivation to move forward. We are professional in the field of sewage treatment roots blower and associated facilities. Welcome to contact us for further discussion.
